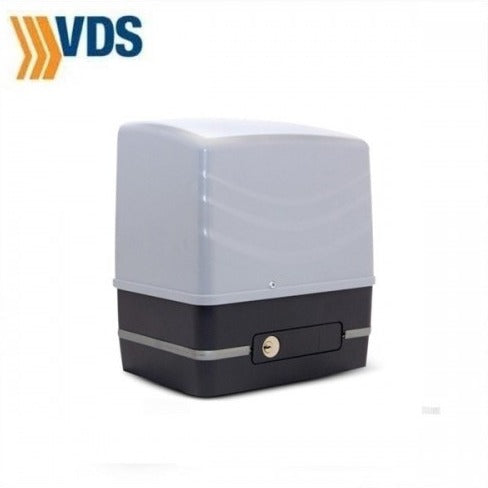

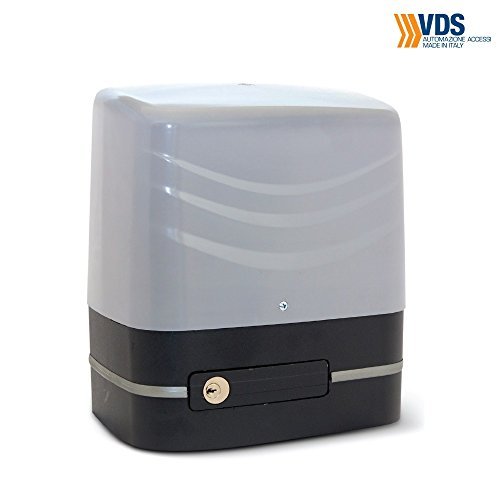

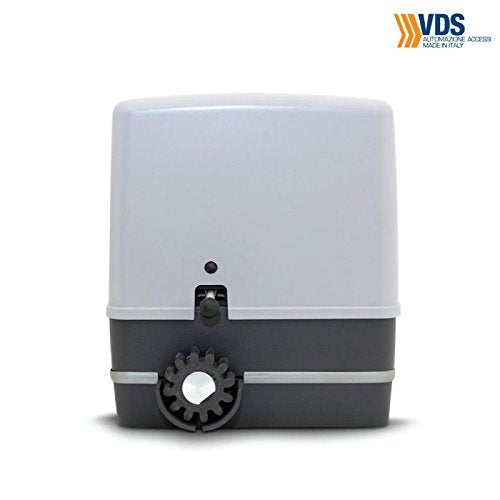

VDS Simply Residential AC Sliding Gate Motor (600kgs) w/built-in Base Bracket Complete Set

VDS SIMPLY-V/CP

VDS Simply Residential AC Sliding gate motor (600kgs) w/built in base bracket complete set c/w :-● 1 pc Sliding Gate Control Panel (3-P-F1)

● 3 pcs 4 Button Transmitter (3-RC12L-TX)

● 1 pc 2 Channel Receiver (3-RC12L-RX)

● 2 pcs Limit Switch Bracket (3-VDS-LSB)

● 4 pcs 1 meter Gear Rack (3-GR-1M)

SIMPLY–V Sliding Gates Operator 230V

FEATURES

• Structure in die-cast aluminum, powder painted
• Steel and cast gears obtained from solid
• Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
• Very quiet operation
• High-performance electric motor
• Release device with customized key
• Available with and without encoder
• Electronic torque control
• Pre- wired and easy programming software
• Available with and without control unit
• Control unit box with air-stop seal against moisture and insects
• Anti-squashing system and slowing down function (en 12453)
• Optional kit battery backup

PERFORMANCE REQUIREMENTS

• Power supply 230Vac
• Operating cycle semi-intensivo 230Vac
• Frequency of use 50% (230Vac)
• Speed 10 mt./min. (230 Vac)
