Nice

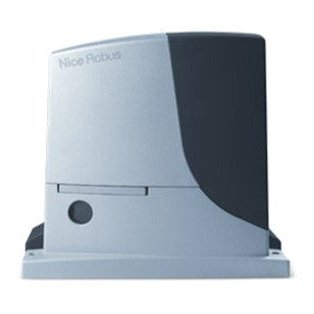

Nice Robus600 Sliding Auto Gate Motor Only

Nice Robus600 Sliding Auto Gate Motor Only

SKU:RB600A-M

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.

Nice 600kgs 24VDC double speed sliding motor with :
• 1pc built-in electronic control panel (RBA3)
• 2pcs limit switch bracket w/ screw (3-Nice-RB/LSB)
• 2pcs release key (3-Nice-RB/RK)
• 1pc base plate w/ screw (3-Nice-RB/BP)

Nice Robus 600

Nice Robus 600

For sliding gates weighing up to 600 kg. Electromechanical gear motor with Nice BlueBUS technology. Versions with electromechanical limit switch (RB600)

Features & Benefits:

Compatible for operation with Solemyo and Opera systems.

  • User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells from the MoonBus series using two wires only.
  • Practical: the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.
  • Advanced: RB600 is equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
  • Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a ?ashing light. 8 programming levels.
  • Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
  • Sturdy: base and release in pressure die cast with easy to open handle.
  • Very quiet: gear motor on bearings.

Technical Specifications

Code

RB600

Electrical data
Power supply (Vac 50 Hz)

230

Absorption (A)

2.5

Power (W)

515

Built-in capacitor (?F)

-

Performance data
Speed (m/s)

0.31

Force (N)

600

Work cycle (cycles/hour)

40

Dimensional and general data
Protection level (IP)

44

Working temp. ( °C Min/Max)

-20 ÷ +50

Dimensions (mm)

330x210x303 h

Weight (kg)

11
