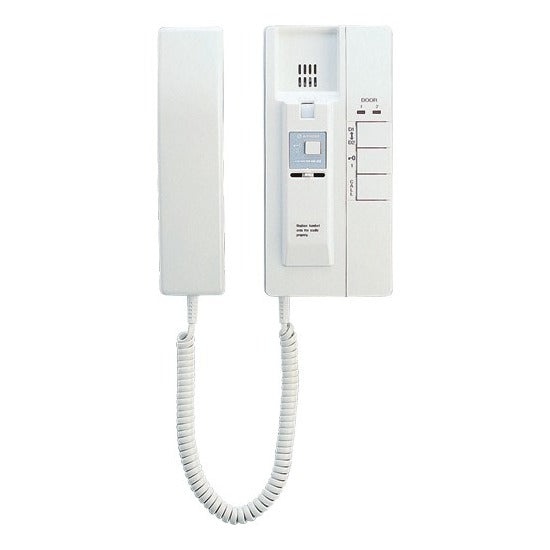

Main Handset for 2 Doors Release

• Communication : Handset for privacy
• Door Release : 24V AC/DC, 500mA
• Wire Type :
  • Door to master - 2-cond., overall shield
  • Master to subs - 6-cond., overall shield
• Distance :
  • Door to master: 500'(22AWG) 1,180'(18AWG)
  • Master to farthest sub: 250'(22AWG) 590'(18AWG)

MAIN HANDSET FOR 2 DOORS, UP TO 3 ROOMS

Part Number : IE-2AD

• 2 door station and 3 inside station capacity
• 2 door release with RY-3DL
• All Call type room calling
• Door monitoring at master station
• AC or DC powered (12~16V AC or 12~24V DC)

Installation Guide

IE-2AD ALL CALL CHIME-TONE INSTALLATION MANUAL

Catalogue

IE-2AD ALL CALL CHIME-TONE INTERCOM
