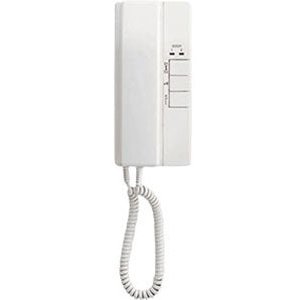

Main Handset for 1 Door Release

• Power Source : 12-16V AC – use AC transformer PT-1210N 12-24V DC, 200mA
• Communication :
  • Handset communication between inside stations
  • Door stations call in with adjustable chime and LED
• Door Release : N/O dry contact, 24V AC/DC, 350mA
• Wiring :
  • Door Station to Master Station: 2-cond.
  • Master Station to Sub Stations: 6-cond.
• Distance :
  • Door Station to Master Station: 500'(22AWG), 1,180'(18AWG)
  • Master Station to farthest Sub Station: 250'(22AWG), 590'(18AWG)

MAIN HANDSET FOR 2 DOORS, UP TO 3 ROOMS

Part Number : IE-2AD

• 2 door station and 3 inside station capacity
• One door release only
• All Call type room calling
• Door monitoring at master station
• AC or DC powered (12~16V AC or 12~24V DC)

Installation Guide

IE-2AD ALL CALL CHIME-TONE INSTALLATION MANUAL
