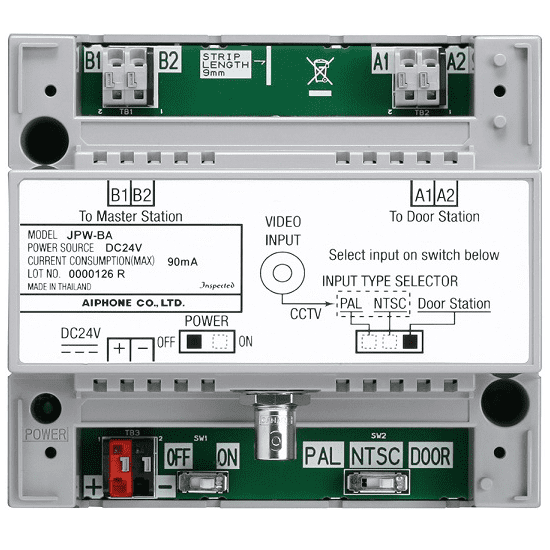

Long Distance / CCTV Camera Adaptor

• Capacity : One adaptor unit for each video door station located beyond the standard specified wire distance
• Mounting : DIN rail (sold separately)
• Wire Type :
  • 2-cond., low cap, PE, solid, non-shielded
  • BNC / Coax for CCTV camera
• Wire Distance :
  • Adaptor to Door Station: 650'
  • Adaptor to Master Station: 330'
• Temperature Rating : 0-40°C (32-104°F )
• Dimensions : 110(H) x 124(W) x 62(D)mm

LONG DISTANCE/ CCTV ADAPTOR

Part Number : JPW-BA

• Extends wiring distance from door stations to master stations up to 820′ max.
• Requires low capacitance Aiphone wire #851602 or #851602DBW
• CCTV Adaptor that allows for an analog CCTV camera to be connected in conjunction with the GT-D audio door station
