is a wireless opening, shock, and tilt detector, that operates within the Ajax security system, connecting via the protected Jeweller radio protocol.
The communication range is up to 1,200 m line of sight.
DoorProtect Plus can operate up to 5 years from a pre-installed battery and capable to detect more than one million openings.

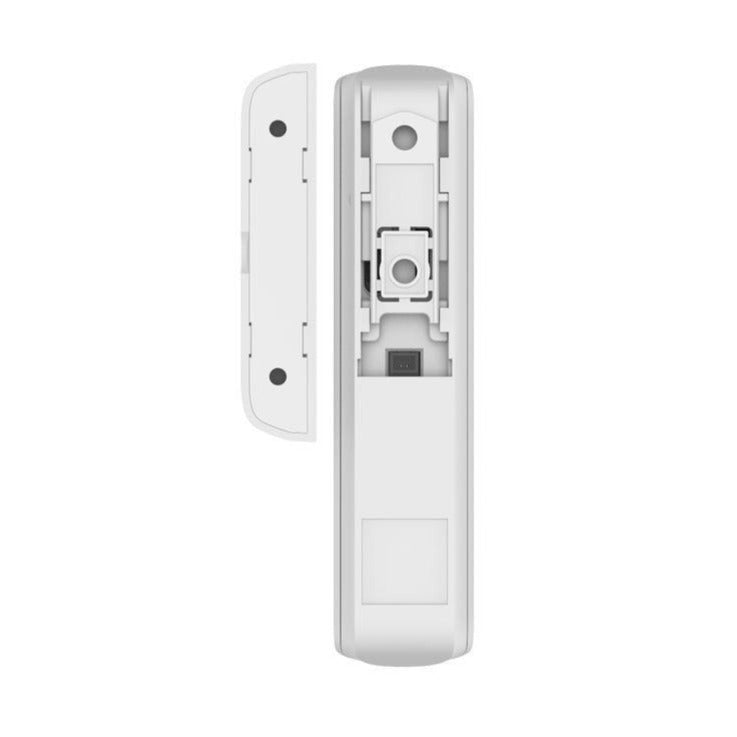

DoorProtect Plus set includes two constant magnets. The small one works at a distance of 1 cm, and the big one — up to 2 cm.
The detector can be positioned horizontally. If there is no need to detect opening, use only the detector part (without magnets) and disable the primary detector in the settings.
The accelerometer detects shocks ( vibration ) and vertical deviation relative to the initial position of more than 5°.

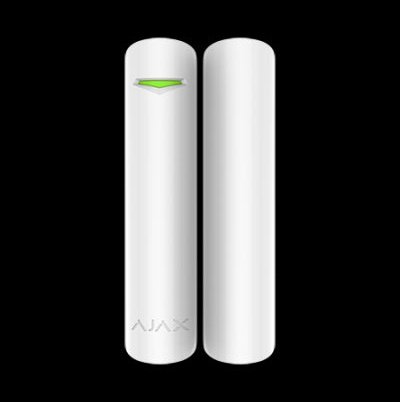

AJAX DoorProtect Plus
Wireless opening detector notifies of first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house.
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
