TP-Link
48-port Gigabit Switch

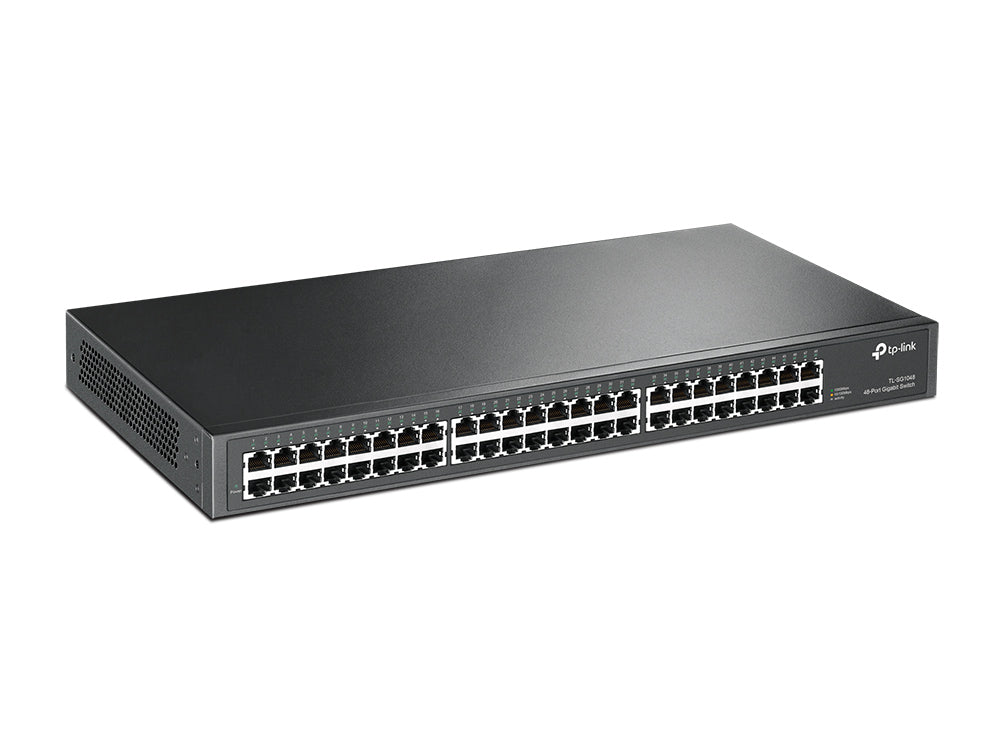

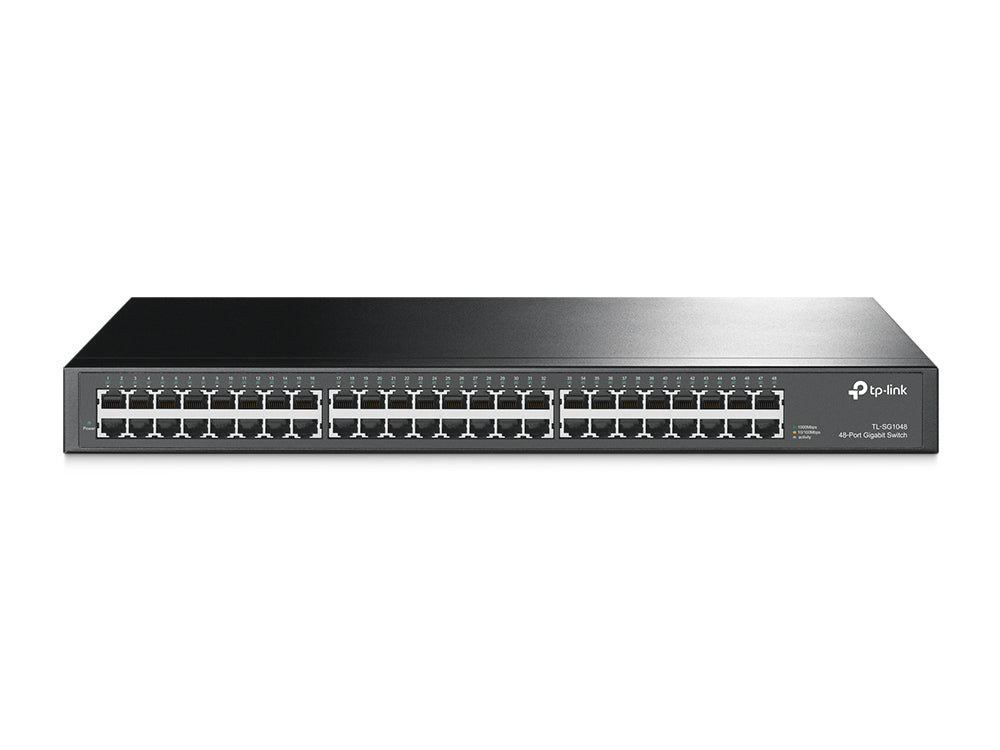

48-port Gigabit Switch
SKU:TL-SG1048
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- 48 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Physical Security Lock | No |

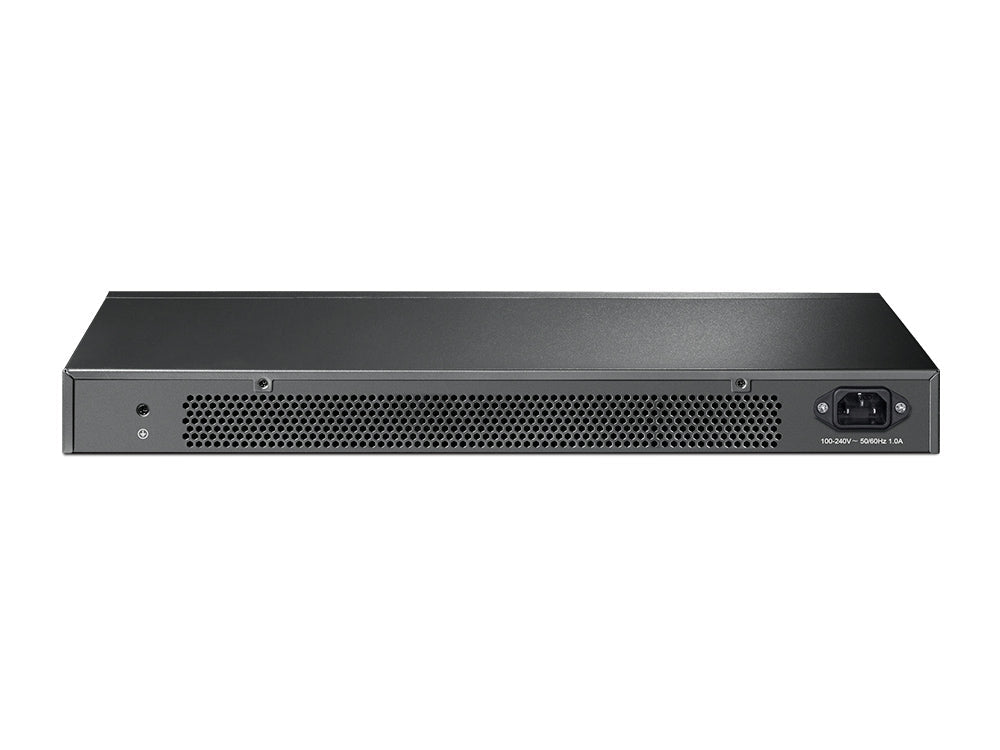

| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 17.3 x 8.7 x 1.7 in. (440 x 220 x 44 mm) |
| Mounting | 19" 1U Rack Mountable (Mounting bracket included) |
| Max Power Consumption | 32.3W |
| Max Heat Dissipation | 110.2BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 96Gbps |
| Packet Forwarding Rate | 71.4Mpps |
| MAC Address Table | 16K |
| Buffer Memory | 12Mb |
| Jumbo Frame | 12KB |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 48-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0_~40_ (32_~104_); Storage Temperature: -40_~70_ (-40_~158_); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
