TP-Link

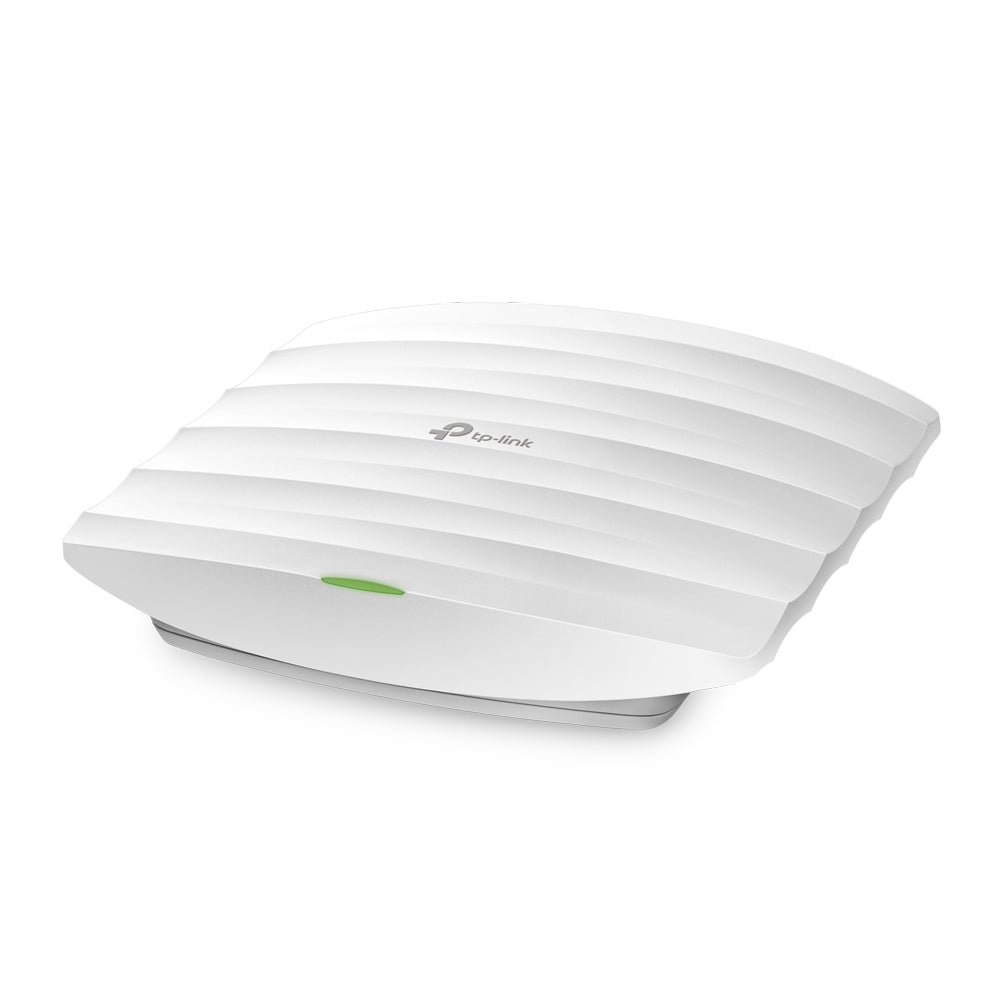

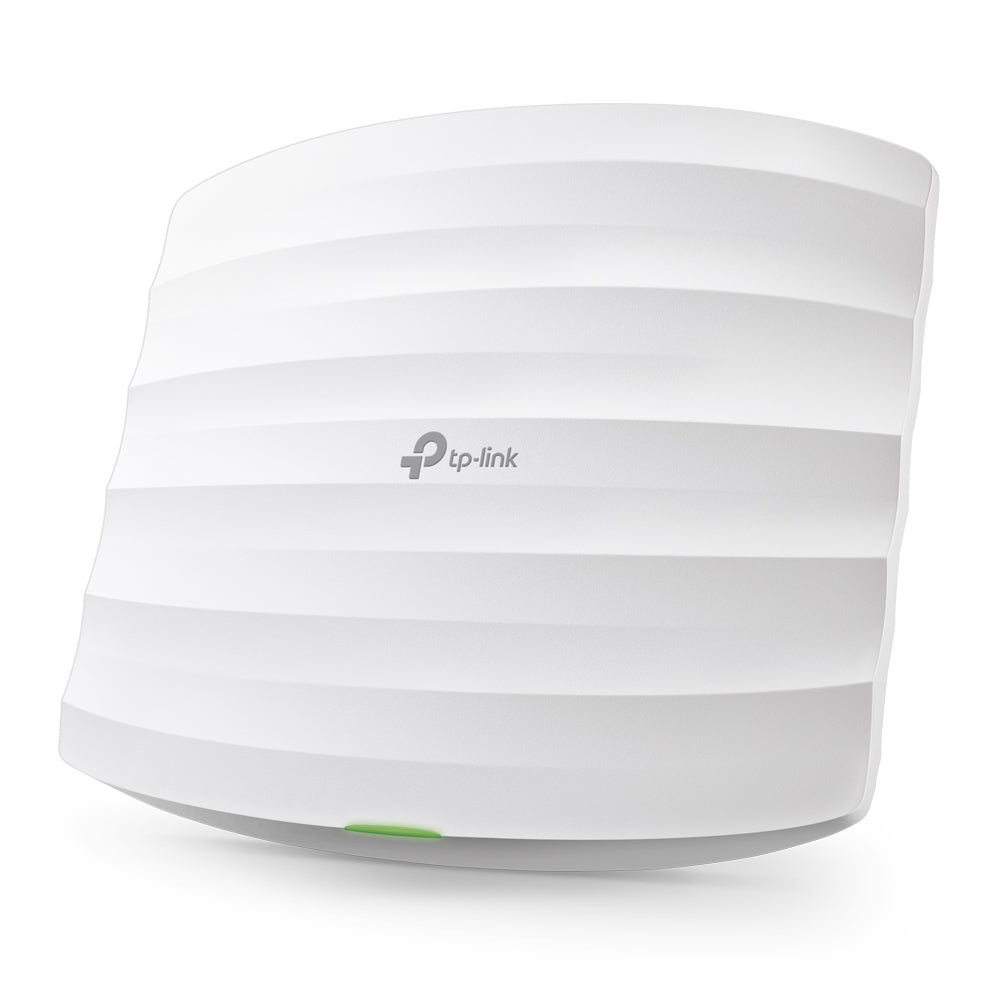

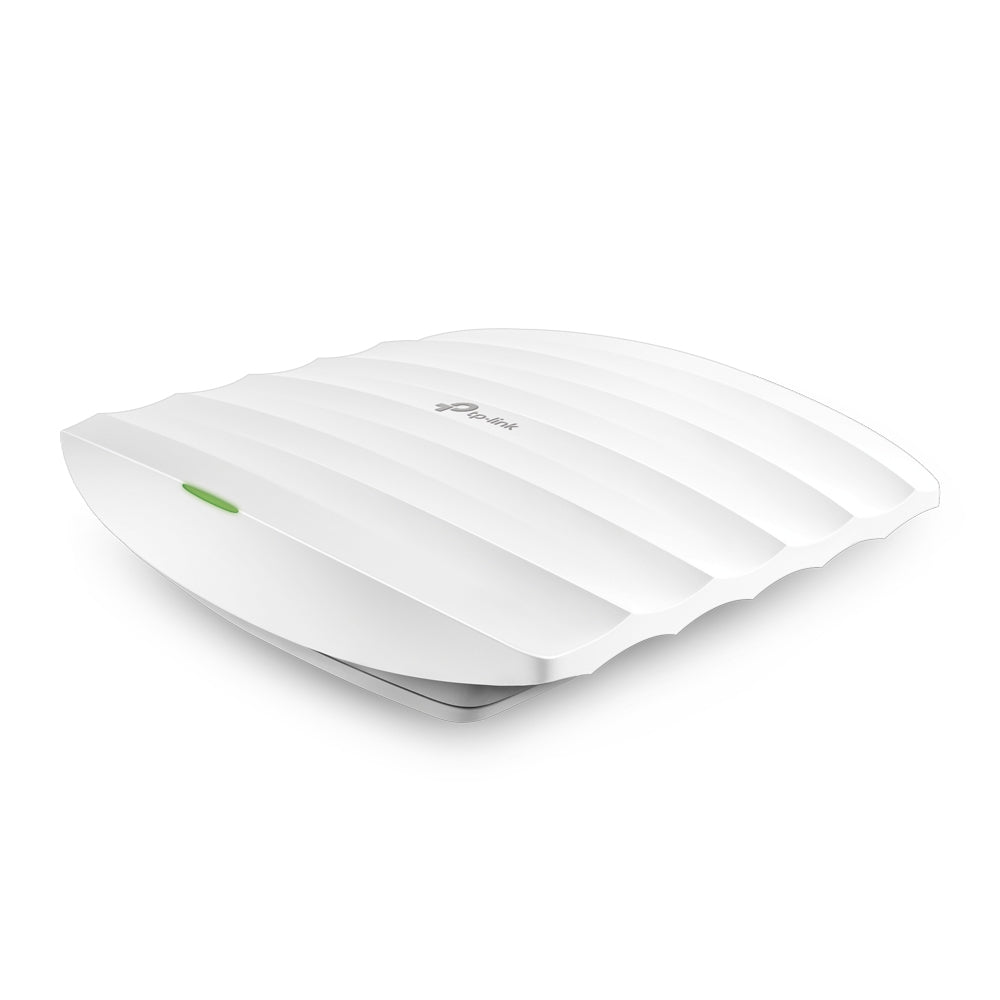

300Mbps Wireless N Ceiling Mount Access Point
300Mbps Wireless N Ceiling Mount Access Point
SKU:EAP115
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise-class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management VLAN for an enhanced network management
-
HARDWARE FEATURES Interface Fast Ethernet (RJ-45) Port *1_Support IEEE802.3af PoE_ Button Reset Power Supply PoE or external 9VDC/0.6A power supply Power Consumption 2.8W Dimensions 7.5×6.8×1.2 in. (189.4×172.3×29.5mm) Antenna Type Internal 2* 4dBi Omni Mounting Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PERWireless Functions Multiple SSIDs _Up to 8 SSIDs_
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control _Adjust Transmit Power on dBm_
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/ClientWireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSKTransmission Power CE:
≤19dBm
FCC:
≤26dBm
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| EAP Controller Software | |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

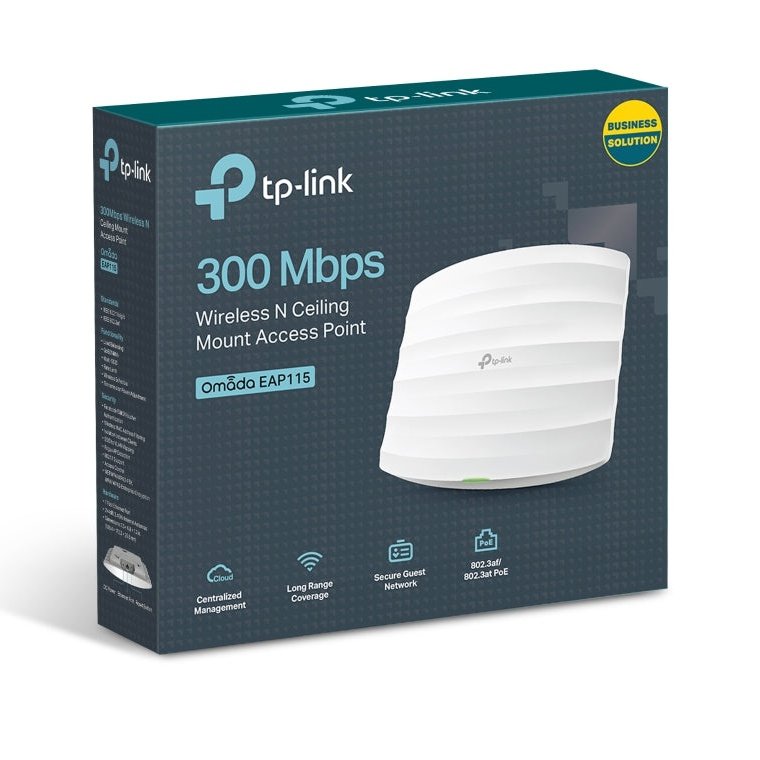

| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | Limited 5-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
