TP-Link

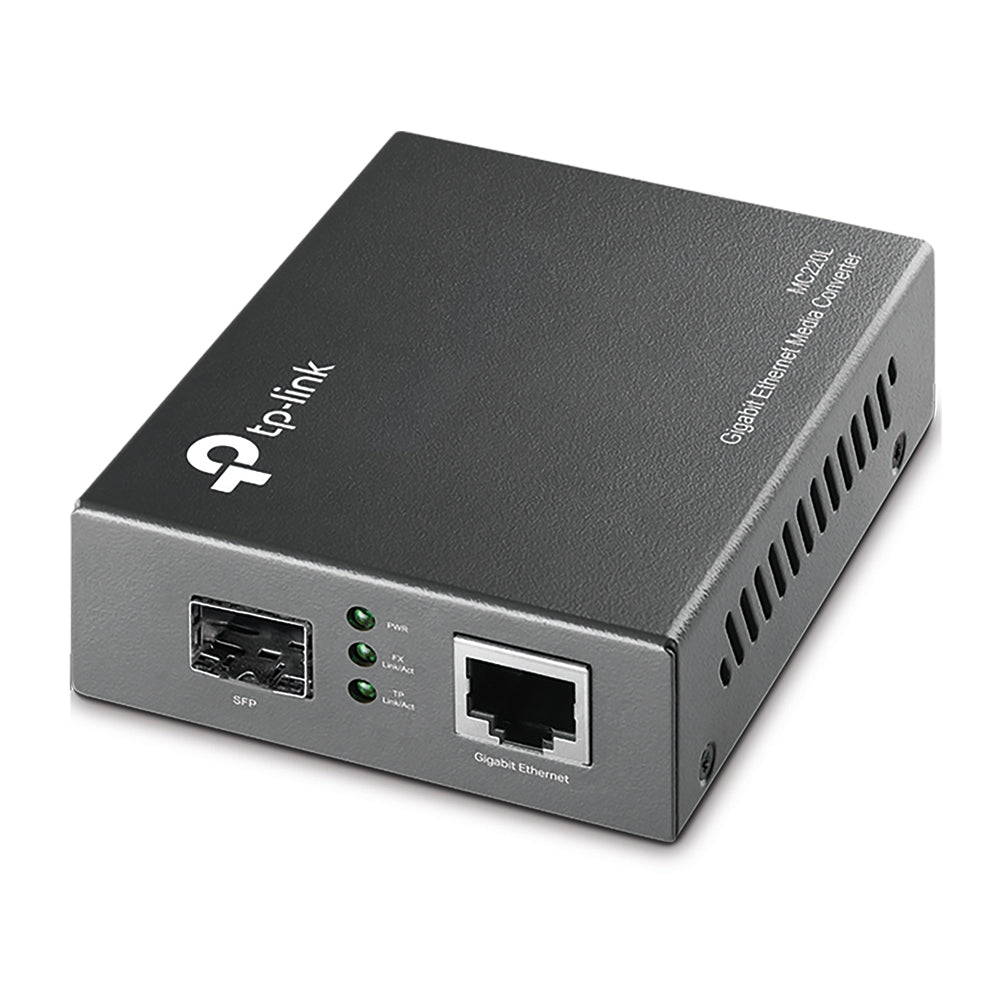

1000Mbps RJ45 to 1000Mbps SFP slot supporting MiniGBIC modules
1000Mbps RJ45 to 1000Mbps SFP slot supporting MiniGBIC modules
SKU:MC220L
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Basic Function | Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber |
| Ports | 1 x Gigabit SFP port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e, 6 cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 x 2.9 x 1.1 in. (94 x 73 x 27 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.7 W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
